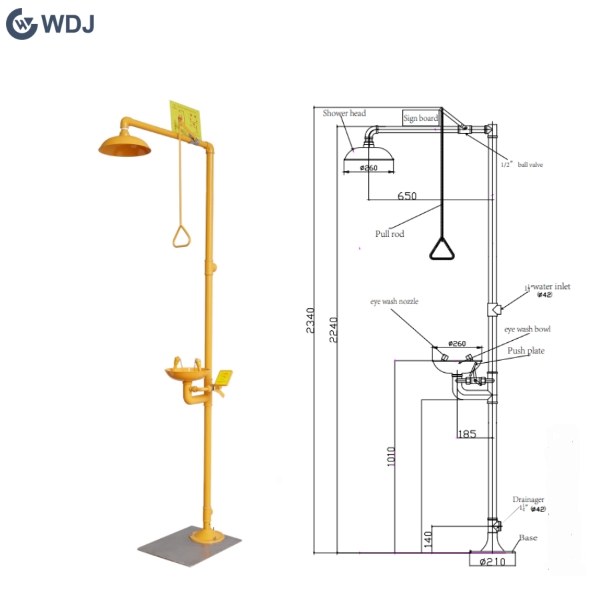

ABS Coating Combination Floor Mounted Safety Shower with Eye Wash

Model:WDJ8813

EMAIL

For those at risk of injury from accidental chemical spills in the workplace, this combination safety shower and eye/face wash offers a complete solution. The floor mounted model is ideal for indoor & outdoor use.The water flow rate for shower is over 76 litres per minute and 12 litres per minute for eye wash. Activation is easy in one second and can be made hands-free with an additional foot treadle.

Laboratory eye/face wash station

This model is with ABS coating, yellow or other colors.





Model: WDJ8813
Height: 2340mm
Material:   stainless Stainless steel   304
Pipe Wall   Thickness2.5-3mm
Working   pressure: 0.2MPa-0.6MPa
Working   environment temperature:  10 ° C -35° C
Inlet   size: NPT 1 1/4
Drain   size: NPT 1 1/4
Shower Head   diameter: 10”/ 26cm
Eyewash bowl   diameter: 10”/ 26cm
Eyewash flow   rate11.4L/min
Shower flow   rate75.7L/min
Function: eye washing, body   showering,
Certificate   & Standard: ANSI Z 358.1-2014,   EN15154.1/2:2006



Optional: Foot pedal, Alarm, height, material, pipe thickness, output signal, ABS coating,,,,,
