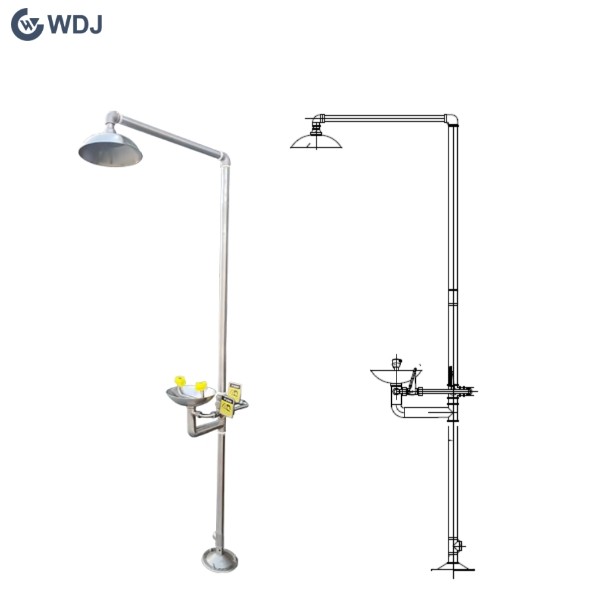

ANSI Stainless Steel 304 Self-Draining Safety Shower & Eyewash

WDJ8810Z, for outdoor hot climate

For those at risk of injury from accidental chemical spills in the workplace, this combination safety shower and eye/face wash offers a complete solution. The floor mounted model is ideal for indoor & outdoor use.The water flow rate for shower is over 76 litres per minute and 12 litres per minute for eye wash. Activation is easy in one second and can be made hands-free with an additional foot treadle.


Model	WDJ8810-Z
Height	2350mm
Material	stainless steel 304
Certificate & Standard	ANSI Z 358.1-2014, EN15154.1/2:2006
Pipe Wall Thickness	2.5/3mm
Function	eye washing, body showering,
Working pressure:	0.2MPa-0.6MPa
Working environment temperature	-5 ° C -35° C
Inlet / Outlet size	NPT 1 1/4″
Shower Head diameter	10"/ 26cm
Eyewash bowl diameter	10"/ 26cm
Eyewash flow rate	≥11.4L/min
Shower flow rate	≥75.7L/min
Eye wash /shower activation	By push plate
Surface	ABS coating (optional)
